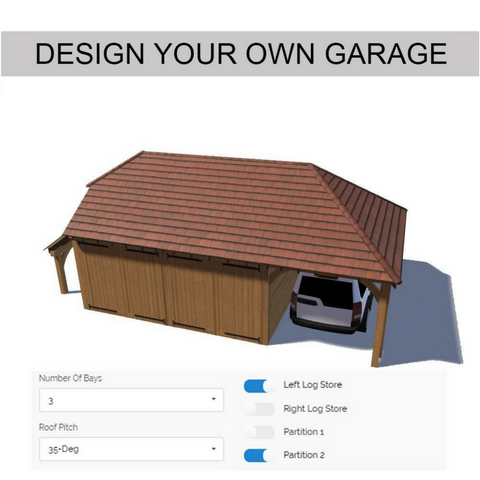

1 Size and roof
Number of bays 2 3 4 5
Left hand end Gable Hipped Barn hip
Right hand end Gable Hipped Barn hip

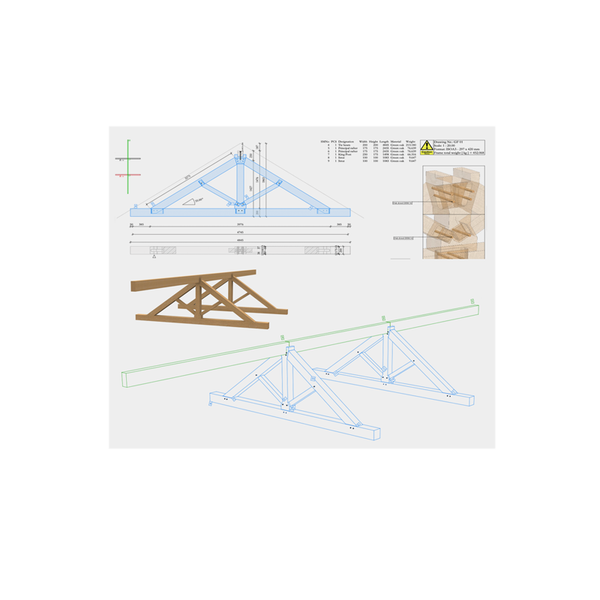

The posts run up past the first floor to a second, eaves head plate, giving full height walls upstairs. Oak raised tie trusses leave the room open; they come with gable ends for now.
A single garage door opening (2.4 to 3.5 m wide) or a double one with a central post (each 2.1 to 3.0 m) can go in either end instead of the front, gabled or hipped. Or leave the end open: with a central post, or (on the Standard) with no post and a deeper head plate. Close in the fronts of the bays in step 4 if you want them shut.
Choose my own sizes
Set the overall length (outside of the posts) and the bays share it equally, or set each bay's clear width between the posts and the length follows. Bay 1 is on the left looking at the front. Depth 4.5 to 7.5 m; each bay 2.0 to 3.5 m. The height under the head plates (2.1 m as standard) can go up to 3.0 m for taller vehicles (2.3 m on the PD, to stay under 4 m).
2 Walls and finish
Cladding Softwood feather edge Oak feather edge
Gable ends Cladding to the tiles Oak barge boards
Eaves No fascias Oak fascias
Wall framing Softwood studs Oak studs
Roof framing Softwood rafters Oak rafters
Rafter depth 147 mm, as engineered 175 mm, room to insulate
Gable end middle posts Yes (current range) No (to check with the engineer)
Eaves closure kit Included Not included
Timber sizes
Oak posts
Oak head plates
Oak tie beams
Rafters
Oak purlins
Oak ridge width 75 100 125 150 175 200
Oak ridge depth 200 225 250 275 300
Our sections are the engineered minimum. You can choose heavier oak or deeper rafters if you'd like a more substantial look.
3 Roof windowsDormers Front Back
Spaced evenly along the roof and kept clear of the trusses.
Rooflights
Bays are numbered from the left, looking at the front. Rooflights are framed for a standard VELUX MK04 (780 x 980); the windows themselves are by others.
At this roof pitch a dormer would stand above the ridge, so only rooflights are available. A steeper roof brings dormers back.
An end bay under a hipped end takes a rooflight only where it clears the hip.
Dormer window width 2 light window 3 light window 4 light window 5 light window 6 light window 7 light window 8 light window
Dormer roof Hipped Gabled
Dormer front Softwood, clad Oak framed front
4
Loft floor Softwood joists Oak joists
Outside oak staircase None Left end Right end Start at the front Start at the back
Log store None Left end Right end Both ends
Log store roof 25° 30° 35° 40° 45°
Log store sides Open Clad side and back
The staircase runs up the outside of a gable end to a landing and a door into the loft.
Fronts of the bays
A closed in bay gets a brick dwarf wall, an oak sole plate, studwork and cladding, like the back wall. Door and window openings can be added to any wall free of charge during the design stage once you have ordered, wherever you need them. They don't change the price, so there's no need to show them here.
Inside walls
5 Your quoteSite postcode, for delivery
Send us your design and we will email you an itemised quotation, with delivery to your site.
Supply of the machined oak frame and roof structure as a kit, ready for your builder, with our engineering stamp. Groundworks, roof covering, doors, windows and assembly are not included. We don't make joinery, but we're happy to advise on good sources for garage doors, windows and doors.
Send us your design
Anything else we should know
Add your details and press Send my design and choose a time : your design comes to us and our booking page opens, so you can choose a time on our booking page (Tuesdays, Wednesdays and Fridays, 11am to 2pm).
